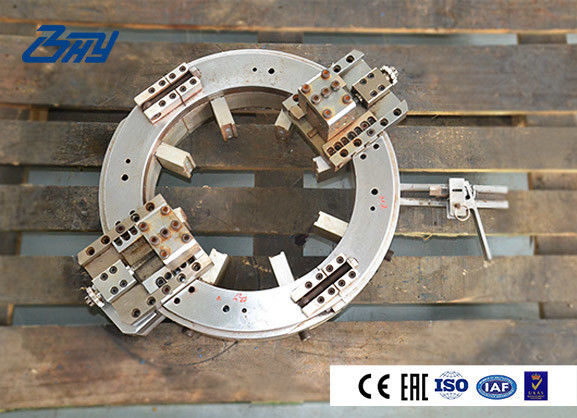

Split Frame Lightweight Cutting Machine and Pipe Beveller Lightweight

Split Frame Lightweight Cutting Machine and Pipe Beveller Lightweight
Split Frame Lightweight Cutting Machine and Pipe Beveller Lightweight Split Frame Lightweight Cutting Machine and Pipe Beveller Lightweight

Large Image :  Split Frame Lightweight Cutting Machine and Pipe Beveller Lightweight

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM0612P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Model: SFM0612P Drive Mode: Pneumatic
Dimension: 1000*990*305mm Net Weight: 45kg
Application Range (O.D.): 6" - 12"(168.3-323.9mm) Bevel Type: V,Y,J,compound Shaped
Wall Th.: ≤80mm Shipping Weight:: 75kg
High Light:

pneumatic cold pipe cutter

,

pneumatic cold cutting machine

Split Frame Lightweight Cutting Machine and Pipe Beveller Lightweight



Product Introduction

The split frame design of the equipment allows the machine to separate and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel operations, as well as weld end preparation on open ended pipe





Specifications

We have three drive modes and they also have different technical parameters. The air requirements are 2-3m³/min. The hydraulic requirements are 65L/min, 10mpa. The electric requirements are 220V/AC. We adopt the star wheel system with 0.08mm/r feed amount. The finish is anodizing sand blasting. We have different packaging methods such as aluminum alloy, metal packing case or wooden box according to the different models of split frame machines.



ModelSFM0612P
Drive ModePneumatic
Air Requirements2-3m³/min
Application Range (O.D.)6" - 12" (168.3-323.9mm)
Wall Thickness≤80mm
Net Weight45kg
Feed MethodStar wheel system
Feed0.08mm/r
                                    All standard accessories included



Structure

Lighter, Small Gap, Split Type, Cutting & Beveling

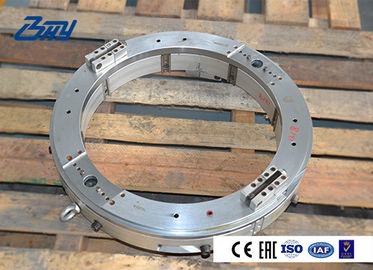

Split Frame Lightweight Cutting Machine and Pipe Beveller Lightweight 0



Report on Comparison of Product Advantages

Name of componentBohyarOthersAdvantages
Fixed coilImported aviation aluminumSteel 45#Light
Moving coilDie steelSteel 45#Solid and durable
ToolImported tool materialLow priceGood quality
Tool slideDie steelSteel 45#Solid and durable
Tool slide structureCompact and small sizeLargeSmall size
Eccentric shaftQuenching and grinding processingLathe processingHigh precision
GearGear-grinding processingGear-shaping processingHigh precision, stable operation and low noises
Power supply (electric)Germany motorLow priceStrong power, stable operation, low noise and long service life
Power supply (pneumatic)Taiwan pneumatic motorLow priceStrong power, stable operation, low noise and long service life
Power supply (hydraulic)White motorLow priceStrong power, stable operation, low noise and long service life
