Small Size Pneumatic Pipe Cutting And Beveling Machine Occupying Small Space

Small Size Pneumatic Pipe Cutting And Beveling Machine Occupying Small Space
Small Size Pneumatic Pipe Cutting And Beveling Machine Occupying Small Space Small Size Pneumatic Pipe Cutting And Beveling Machine Occupying Small Space

Large Image :  Small Size Pneumatic Pipe Cutting And Beveling Machine Occupying Small Space

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM0408P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Model: SFM0408P Drive Mode: Pneumatic
Processing Range: 4"-8" Max Wall Thickness: 40mm
HS: 8461909000 Beveling Tools: Clip-type, Ordinary Cutting Tools
High Light:

pneumatic cold pipe cutter

,

pneumatic cold cutting machine

Small Size Pneumatic Pipe Cutting And Beveling Machine Occupying Small Space



Split Frame Machine



Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.



Specifications

We have three drive modes and they also have different technical parameters. The air requirements are 2-3m³/min. The hydraulic requirements are 65L/min, 10mpa. The electric requirements are 220V/AC. We adopt the star wheel system with 0.08mm/r feed amount. The finish is anodizing sand blasting. We have different packaging methods such as aluminum alloy, metal packing case or wooden box according to the different models of split frame machines.



Our Advantages

■ Material
Fixed rings use lightweight and high-strength imported aeronautical aluminum with anodized surface;
Moving coils use mold steel with chrome-plated surface .

■ Technology
Eccentric shafts and gear shafts used grinding process after quenching to ensure the accuracy of the tooth surface.
■ Power

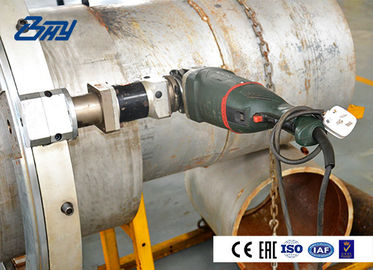

Three imported motors to choose from: Germany Metabo electric motor, imported pneumatic motor and American White hydraulic motor.



On-site Service Reference

Site location Henan, China
Industry Power Station
Pipe O.D 56" (1414mm)
Wall thickness 110mm
Bevel type Double D
Material 15Cr,P91
Weld width 80mm
Machine SFM4860
Other information Cut and bevel the weld, but not cut off; Narrow working space.
Results Finished the work successfully and got the commendatory letter from our client.



Report on Comparison of Product Advantages

Name of component Bohyar Others Advantages
Fixed coil Imported aviation aluminum Steel 45# Light
Moving coil Die steel Steel 45# Solid and durable
Tool Imported tool material Low price Good quality
Tool slide Die steel Steel 45# Solid and durable
Tool slide structure Compact and small size Large Small size
Eccentric shaft Quenching and grinding processing Lathe processing High precision
Gear Gear-grinding processing Gear-shaping processing High precision, stable operation and low noises
Power supply (electric) Germany motor Low price Strong power, stable operation, low noise and long service life
Power supply (pneumatic) Taiwan pneumatic motor Low price Strong power, stable operation, low noise and long service life
Power supply (hydraulic) White motor Low price Strong power, stable operation, low noise and long service life
