Single Person Mode Lightweight Flange Facing Tool For Pipes , Valves

Single Person Mode Lightweight Flange Facing Tool  For Pipes , Valves
Single Person Mode Lightweight Flange Facing Tool  For Pipes , Valves Single Person Mode Lightweight Flange Facing Tool  For Pipes , Valves

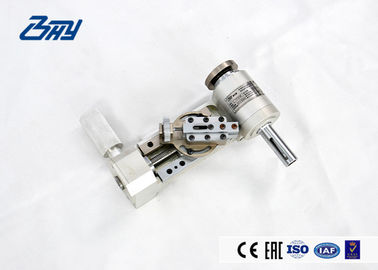

Large Image :  Single Person Mode Lightweight Flange Facing Tool For Pipes , Valves

Product Details:
Place of Origin: Jiangsu China
Brand Name: BHY
Certification: ISO 9001:2008, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: FFT106
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Aluminium Case
Delivery Time: 15-35days
Supply Ability: 500 PCS/Year
Detailed Product Description
Brand Name: Bohyar Drive Mode: Manual
Min Int Clamp Cap: 1"(25.4mm) Max Int Clamp Cap: 6"(152mm)
Installation: Vertical Or Horizontal Installation Shipping Dimensions: 495x390x165(mm)
High Light:

portable flange facing machine

,

flange facing equipment

Single Person Mode Lightweight Flange Facing Tool For Pipes , Valves



Product Introduction

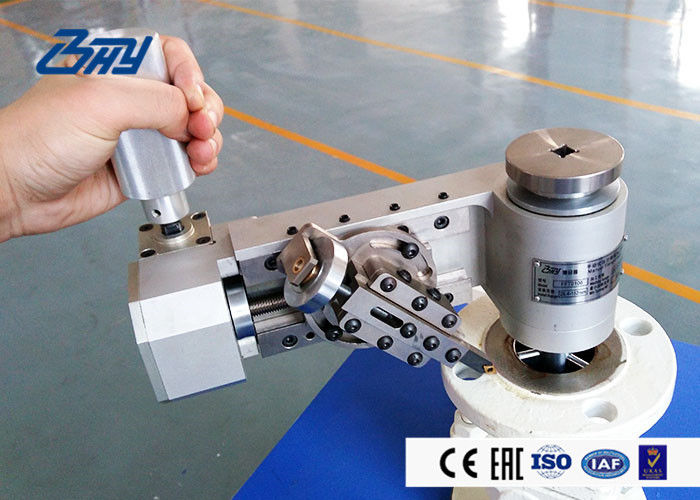

The FFT106 manual flange facing tool produced by our company can be used for 1"-6" (25.4mm-152.4mm) valve flange faces. It is the ideal choice of any machining tool inventory. Due to clamping and machining range, it is a very efficient tool for serving or repairing workshop and piping construction companies and vessel manufacturers.



Application

FFT series of manual flange facing tool are the perfect solution to all small diameter facing problems. They are widely used in pipes, valves, flanges and other damage to the end face of the online repair.



Features

■ No external power supply is needed, and the single-person mode can be easily applied for machining.

■ The portable product can be used in a wide range of applications.

■ It can be installed in any direction, widening the applicable scope.

■ The feeding screw can be replaced rapidly, and the machining of waterlines and smooth surfaces can be done at the same time.

■ The rapid-locking center shaft can be aligned accurately to be kept concentric with the flange face.

■ Machining is done in the cold state, and heat or spark will not be produced.

■ Small-diameter flanges can be machined perfectly and easily by one operator at the accuracy and performance similar to lathes.



Technical Parameters

Model FFT106
Min int clamp cap 1in(25.4mm) Max int clamp cap 6in(152mm)
Min facing diam 1in(25.4mm) Max facing diam 14in(350mm)
Minimum swing diameter 460mm Power Manual
Mounting method Installed vertically or horizontally
Processing standard ASME B16.5
Shipping weight 17lbs(7.7kg) Shipping dimensions 495*390*165mm



Operating Instructions

■ Wear protective clothing including safety goggles, hard hat, steel toe shoes, ear plugs (hearing protection),          hair restraints and coveralls.

■ Never wear jewelry when operating rotating machinery.

■ Keep the worksite clean. Use a brush to remove chips from the work piece. Do not use your hands or an air       hose to remove chips.

■ Support work material for total machine weight.

■ Keep hands away from machine when operating! Adjustments should only be made when the rotation has           stopped. Keep hands away from all pinch points



Information and feedback

Maintenance Information: Before the machine or any of its accessories is returned for maintenance, please call Bohyar Company. We will give suggestions on transportation and handover of the machine or accessories, and estimate the time and cost of corresponding maintenance.



Feedback: To constantly improve the satisfaction of users with the product quality and service, we will appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
