Quick Installation Cold Pipe Cutter and Beveller With Pneumatic Drive Mode

Quick Installation Cold Pipe Cutter and Beveller With Pneumatic Drive Mode
Quick Installation Cold Pipe Cutter and Beveller With Pneumatic Drive Mode Quick Installation Cold Pipe Cutter and Beveller With Pneumatic Drive Mode

Large Image :  Quick Installation Cold Pipe Cutter and Beveller With Pneumatic Drive Mode

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM0814P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Model: SFM0814P Drive Mode: Pneumatic
Net Weight: 55kg Application Range (O.D.): 8" - 14"(219.1-355.6mm)
Wall Th.: ≤100mm Air Requirements: 2-3m³/min
Feed: 0.08mm/r More: All Standard Accessories Included
High Light:

pneumatic pipe cutting beveling machine

,

pneumatic cold cutting machine

Quick Installation Cold Pipe Cutter and Beveller With Pneumatic Drive Mode



Product Introduction

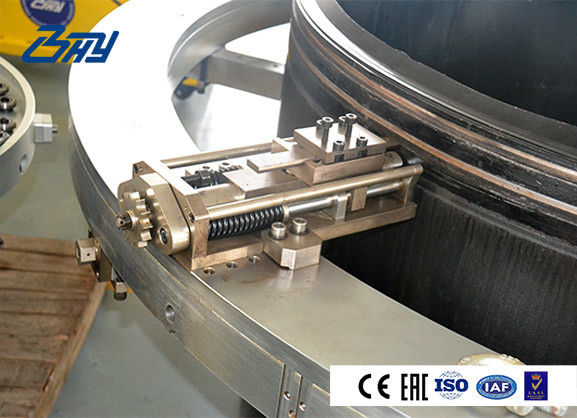

The Split Frame machines is ideal for all types of pipe cutting,beveling and end prepping.Our precise,consisteently square cuts and bevels on pipe and tube and casing the first time,every time.SFM series machines are widely used in nuclear power, thermal power, petroleum, chemical plant, natural gas, boiler plant, pharmaceutical factory and other areas.



Product Advantages

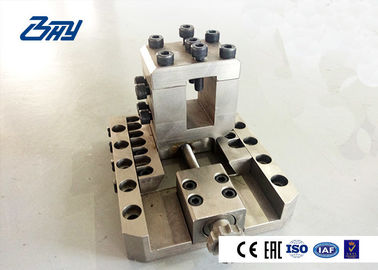

Our Material

• Fixed rings use lightweight and high-strength imported aeronautical

• Aluminum with anodized surface, moving coils use mold steel with chrome-plated surface , which is better than the conventional mechanical properties of steel.

Quick Installation Cold Pipe Cutter and Beveller With Pneumatic Drive Mode 0

Others

•According to the market research, most fixed ring and moving coil have used the ordinary 45# steel with black surface , which is bulky and not durable ,easy to fade and rust.

Quick Installation Cold Pipe Cutter and Beveller With Pneumatic Drive Mode 1



Specifications

Model SFM0814P
Drive Mode Pneumatic
Air Requirements 2-3m³/min
Application Range (O.D.) 8" - 14" (219.1-355.6mm)
Wall Thickness ≤100mm
Net Weight 55kg
Feed Method Star wheel system
Feed 0.08mm/r
                                All standard accessories included



Standard Configuration

We have standard configuration for the shipped machine. In addition to packaged SFM machine, we will give you relevant motor, cutting and beveling tools according to your drive mode and choice. We will have a set of tools to help use the machine such as rubber hammer, spray bottle, square and wrench set. Moreover we will have relevant documents to support you such as operating manual, certificate of conformity and u-disk. If you have other demands, we will try to meet your demands.



FAQ

Q: Do you have any foreign agents?

A: Yes, of course. We pay attention to the foreign market and expand the foreign continuously through our agents in Russia, Korea, Sudan, Pakistan, Malaysia and so on. We are willing to develop new agents in other countries.

Q: Which certificate does your company have?

A: We have many certificates such as high-tech enterprises, high-tech product certification, high-tech product certification, ISO14001, ISO18001, ISO9001, CU-TR, CE and many patent certificates of our machines.
