Quick Heat Adjust Speed Hydraulic Power Unit Impact Resistance 10Mpa

Quick Heat Adjust Speed Hydraulic Power Unit Impact Resistance 10Mpa
Quick Heat Adjust Speed Hydraulic Power Unit Impact Resistance 10Mpa Quick Heat Adjust Speed Hydraulic Power Unit Impact Resistance 10Mpa

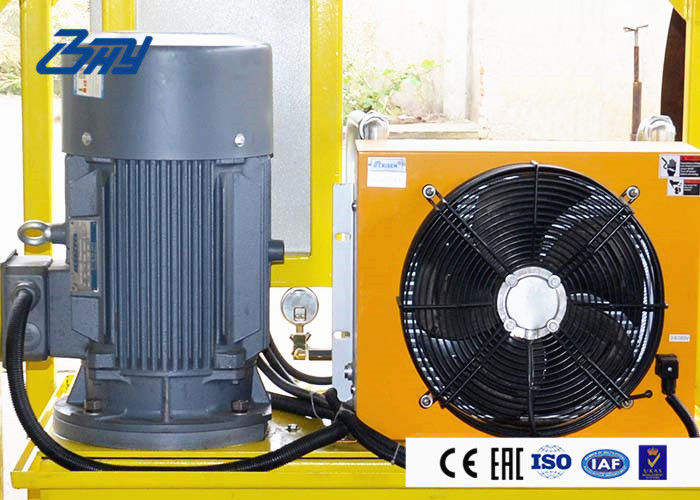

Large Image :  Quick Heat Adjust Speed Hydraulic Power Unit Impact Resistance 10Mpa

Product Details:
Place of Origin: Jiangsu China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: HS20
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15-35days
Payment Terms: T/T, L/C
Supply Ability: 200pcs/year
Detailed Product Description
Brand Name: Bohyar Drive Mode: Electric
Rated Pressure: P=10Mpa Hydraulic Motor Torque: M=126N.M
Rotation Range: 0-20r/min Overall Size: 1200x770x1310(mm)
High Light:

hydraulic power pack unit

,

hydraulic power control unit

Quick Heat Adjust Speed Hydraulic Power Unit Impact Resistance 10Mpa



Product Introduction

HS series of hydraulic power units adopt step less speed control system to adjust different speed requirements. The quick connector can be quickly plugged and pulled without leakage to ensure that users can quickly access. Hydraulic motor adopts imported brands which have small size, light weight, stable operation, strong power, impact resistance, high temperature as well as long life





 Features

■ Small size, easy to move.

■ Suitable for most of the working conditions.

■ Step less speed control system to adjust the different speed

■ Supply stable and efficient power with the optimized hydraulic systems



Technical Parameters

Model HS-20
Drive mode Electric
Rated pressure P=10Mpa
Rated flow Q=38L/min
Rated power N=15KW(20HP)
Rated speed n=1450 r/min
Shipping dimensions 1200x770x1310(mm)
Shipping weight 400kg



Equipment Overview

■The hydraulic truck HS-10 consists of a motor and a variable piston pump. The entire hydraulic system, using a one-piece structure and equipped with casters and push hands, is easy to move. It also makes the pipe connection easier with quick change connector.

■ The air cooling system can ensure that the equipment operate continuously within 40 ℃ ambient temperature.

■ The control panel has an emergency stop button for emergency use.

■ It adopts step less speed control system to adjust the different speed.

■ The quick connector can be quickly plugged and pulled without leakage to ensure that users can quickly access.



Product Advantages

High quality imported hydraulic motors of the hydraulic power unit are small in size, light in weight, large in output torque, stable in operation and good at shock resistance.

Quick heat dissipation performance of the machine is shown in the process of measuring the oil temperature which is stabilized at 30 to 40 ℃ for 100 hours.



Information and feedback



Warranty Information: The HS-20 hydraulic vehicle produced by Bohyar has a warranty period of one year. In case of any quality problem during the warranty period, we will provide free maintenance and repairment service.

Feedback: We will highly appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.



FAQ

Q: Are you Manufacture?

A: Yes, we are professional manufacture with high quality and competitive price, we have our own R&D team.

Q: How long is your delivery time?

A: Around 35 days after we received the payment.

Q: How to choose the drive motor?

A: Under customer requirement, normally the electric motor is much more flexible, the hydraulic one can offer stronger power
