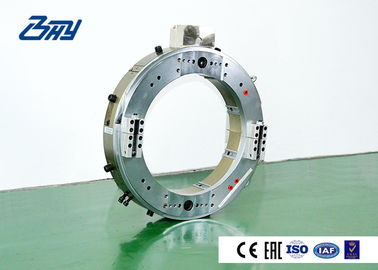

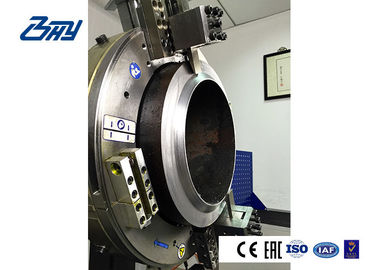

Portable Split Frame Occupying Small Space Pipe Beveling Tool

Portable Split Frame Occupying Small Space Pipe Beveling Tool
Portable Split Frame Occupying Small Space Pipe Beveling Tool Portable Split Frame Occupying Small Space Pipe Beveling Tool Portable Split Frame Occupying Small Space Pipe Beveling Tool Portable Split Frame Occupying Small Space Pipe Beveling Tool

Large Image :  Portable Split Frame Occupying Small Space Pipe Beveling Tool

Product Details:
Place of Origin: Suzhou, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM 0612
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 5 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Name: Portable Pipe Cutting And Beveling Machine Model: SFM0612
Drive Mode: Electric Working Range: OD: 6" - 12"(168.3-323.9mm)
Feed: 0.08mm/r Package: Aluminum Alloy, Metal Packing Case Or Wooden Box
Function: Cut, Bevel, Counterbore, Drill And Mill Pipes Bevel Type: V,Y,J,compound Shaped
Cutting And Beveling Time: 11.16min (Wall Thickness:10mm)
High Light:

pipe cutter and beveler

,

pipe cold cutting machine

Portable Split Frame Occupying Small Space Pipe Beveling Tool



Pipe Beveling Tool Introduction



The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4" to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.



Pipe Beveling Tool Features



■ The tool slide is in high strength structure, with long service life and high processing precision;

■ Clamping pipe is simple and the expansion blocks in all models have been equipped based on the model of machines, so the clamping can be completed only by making subtle adjustment.

■ It is designed in the principles of light weight, portability and durability;



Pipe Beveling Tool Beveling type

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site



Pipe Beveling Tool Models



Model

Processing

range (in)

Max wall

thickness (mm)

Weight(kg)

Drive mode

SFM0206

2"~ 6"

30

35

Pneumatic

Hydraulic

Electric

SFM0408

4"~ 8"

40

40

SFM0612

6"~12"

80

45

SFM0814

8"~14"

100

55

SFM1218

12"~18"

100

70

SFM1420

14"~20"

100

76

Electric

Hydraulic

SFM1824

18"~24"

100

123

SFM2026

20"~26"

100

130

SFM2430

24"~30"

100

142

SFM2632

26"~32"

100

150

SFM3036

30"~36"

100

159

SFM3642

36"~42"

100

179

SFM4248

42"~48"

100

198

* Processing range can be customized according to the pipe diameter.



Pipe Beveling Tool Manufacture



Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

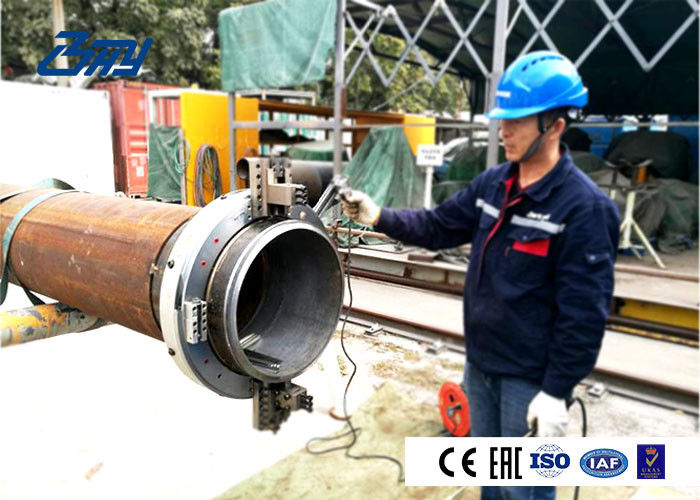

Working On Site





Portable Split Frame Occupying Small Space Pipe Beveling Tool 7
