|Brand Name:||Bohyar||Drive Mode:||Electric|
|Rated Flow:||Q=65L/min||Hydraulic Motor Speed:||N=294r/min|
|Hydraulic Motor Torque:||M=126N.M||Electric Motor Power:||N=15KW(20HP)|
hydraulic power control unit,
hydraulic electric power pack

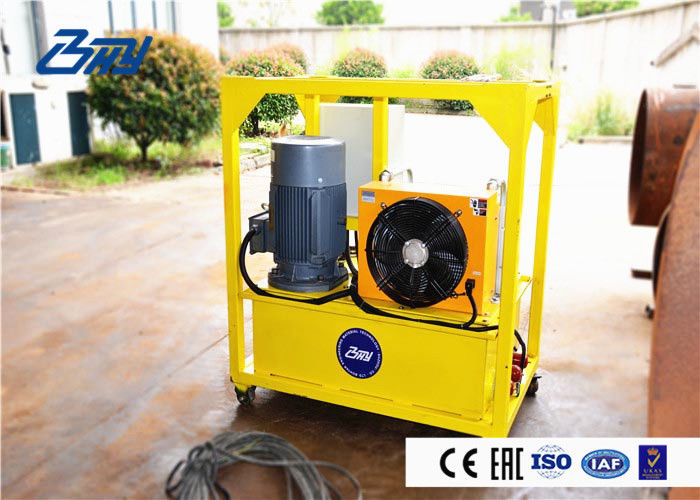

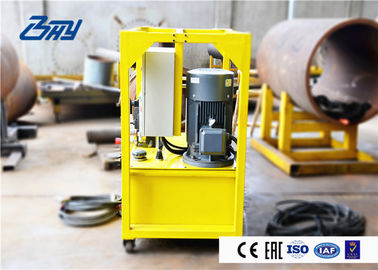

The hydraulic truck HS-20 is made up of a variable and a motor piston pump. The entire hydraulic system, using a one-piece structure and equipped with casters and push hands, is easy to move. It also makes the pipe connection easier with quick change connector.
Hydraulic Power Units made by Bohyar, can meet the requirements of various industries, such as:Power Station, Nuclear Power Station, Petrochemical Plant, Boiler Plant, Refinery.
■ Portable, easy to handle with lightweight
■ Pumps, solenoid valves and motors are all imported, boasting stable performance and long service life.
■ Quick heat dissipation, can keep oil in 30 to 40℃working temperature
■ Can manually adjust the system pressure
|Rated speed||n=1450 r/min|
Hydraulic power units are especially made for pipeline processing equipment for various occasions. Less training time is needed, because it is easy to operate with a wireless remote control module.
Our Hydraulic power unit can keep the oil temperature which is stabilized at 30 to 40℃ for 100 hours. In the process of measuring
■ Move the device to the appropriate machining position.
■ Add the low-temperature anti-wear hydraulic oil from the oil filler to the top of 1/5 level of the tank.
■ Connect the power cord, open the cabinet to ensure that the phase and phase sequence protection relay work indicator light is always on the state. If not, replace the power line phase sequence until the work indicator is light.
■ Start the motor and then stop and observe from the motor tail whether the motor rotation is rotated clockwise.
■ Press the motor start button to start the motor and turn on the enable switch to supply the hydraulic motor. Control the speed switch to adjust the hydraulic motor speed.
■ After the use, close the enable switch, then press the motor stop button to turn off the motor.
Q: Are you Manufacture?
A: Yes, we are professional manufacture with high quality and competitive price, we have our own R&D team.
Q: How long is your delivery time?
A: Around 35 days after we received the payment.
Q: How to choose the drive motor?
A: Under customer requirement, normally the electric motor is much more flexible, the hydraulic one can offer stronger power
