OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine

OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine
OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine

Large Image :  OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine

Product Details:
Place of Origin: Suzhou, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM3036 Hydraulic Cold Cutting Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Name: Hydraulic Cold Pipe Cutting And Beveling Machine Model: SFM 3036
Processing Range: 30"-36"(OD:762-914.4mm) Drive Mode: Hydraulic
Feed: 0.08mm/r Rotation Speed:: 0 - 2mm/min
Hydraulic Demand:: 65L/Min,10MPa (15.8GPM,1500PSI) Package: Aluminum Alloy, Metal Packing Case Or Wooden Box

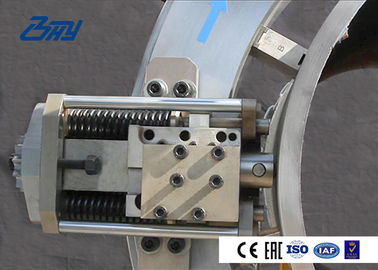

Tool Slide: Spring,thick-wall,drilling&beveling Tool Slides
High Light:

cold pipe cutting and bevelling machine

,

pipe cold cutting machine

OD 914.4mm Hydraulic Cold Pipe Cutting and Beveling Machine , Pipe Cutter Machine



Cold Pipe Cutting And Beveling Machine Introduction

This machine, pipe cutting and bevelling machine adopts the planet gear decelerator to moderate, the awl gear wheel transmission of arc tooth rotates the round ring tooth to enclose, the main frame Can separated it for two; Cut and bevel machine is suitable for the tube to cut off; Knife rest slippery platform the knife moves automatically, can finish cutting, slope mouth meanwhile; It is simple to operate, it is safe and reliable



Cold Pipe Cutting And Beveling Machine Application Industries



■ Energy Field

   Oil and Gas

   Pipeline Transmission,Gathering&Storage

   Petrochemistry



■ Construction and Construction Equipment

   Water and Gas

   Water and Treatment

   Heater



■ Process Engineering

   Chemical Industry

   Shipbuilding

   Boiler Shop

   Semiconductor



Beveling type

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

Cold Pipe Cutting And Beveling Machine Models



Model

Processing

range (in)

Max wall

thickness (mm)

Weight(kg) Drive mode
SFM0206 2"~ 6" 30 35

Pneumatic

Hydraulic

Electric

SFM0408 4"~ 8" 40 40
SFM0612 6"~12" 80 45
SFM0814 8"~14" 100 55
SFM1218 12"~18" 100 70
SFM1420 14"~20" 100 76

Electric

Hydraulic

SFM1824 18"~24" 100 123
SFM2026 20"~26" 100 130
SFM2430 24"~30" 100 142
SFM2632 26"~32" 100 150
SFM3036 30"~36" 100 159
SFM3642 36"~42" 100 179
SFM4248 42"~48" 100 198
SFM4860 48"~60" 100 642
SFM6072 60"~72" 100 730
SFM7284 72"~84" 100 820

* Processing range can be customized according to the pipe diameter.

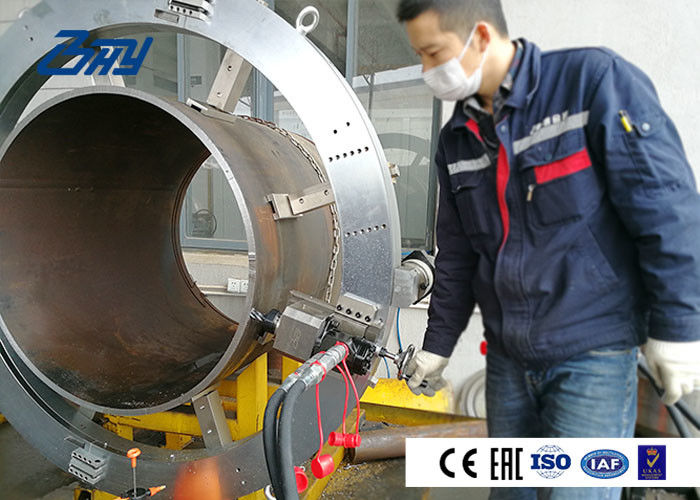

Cold Pipe Cutting And Beveling Manufacture



Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Portable Lightweight Hydraulic Pipe Cutting Beveling Onsite Machine for Construction

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

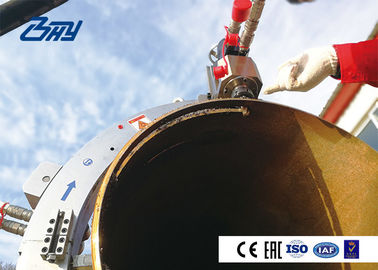

Cold Pipe Cutting And Beveling Working On Site
