Low Speed Double Acting Diesel Hydraulic Power Unit For Boiler Plant , Refinery

Low Speed Double Acting Diesel Hydraulic Power Unit For Boiler Plant , Refinery
Low Speed Double Acting Diesel Hydraulic Power Unit For Boiler Plant , Refinery Low Speed Double Acting Diesel Hydraulic Power Unit For Boiler Plant , Refinery

Large Image :  Low Speed Double Acting Diesel Hydraulic Power Unit For Boiler Plant , Refinery

Product Details:
Place of Origin: Jiangsu China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: HS36
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: Negotiate
Supply Ability: 200PCS/Year
Detailed Product Description
Brand Name: Bohyar Effective Volume Hydraulic Oil: 300L
Item No.: HS-36 Rated Flow: Q=90L/min
Overall Size: 1386x1200x1500(mm) Electric Motor Power: N=28KW(36HP)
High Light:

diesel driven hydraulic power units

,

diesel powered hydraulic power units

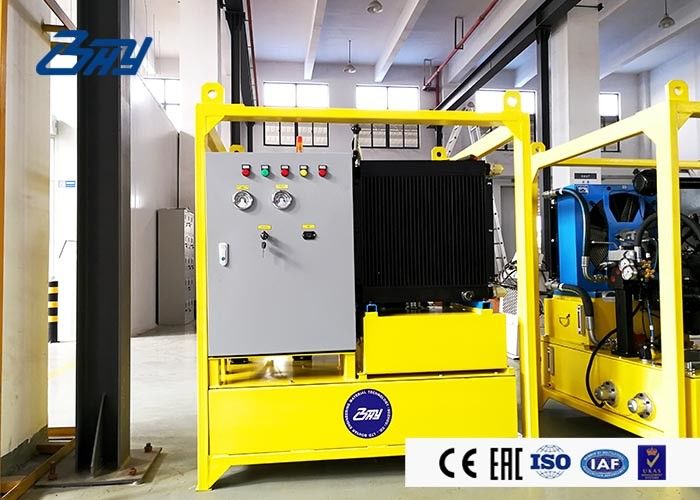

Low Speed Double Acting Diesel Hydraulic Power Unit For Boiler Plant , Refinery



Product Introduction

HS series of diesel hydraulic power units are mobile hydraulic power supply stations without connecting to the electric power. Our HS 36 can offer the strong and stable power without connecting to the electric power, very suitable for the field, factory working.



Features

Diesel Hydraulic system uses imported gear pump. The output pressure is stable. It can increase the life of the tool, save the cost and improve the efficiency. The battery starts the diesel engine which drives the hydraulic pump. The hydraulic pump produces the high pressure hydraulic oil which drives the hydraulic motor to drive the load.

■ It uses step less speed variation. The equipment can achieve tool setting and adjustment in the case of low-speed.
■ It adopts compact design. The overall size and weight are compressed under the premise of ensuring the power, which can guarantee the stability of the machine and convenient transportation.


Technical Parameters

Model HS-36
Drive mode Diesel
Rated pressure P=15Mpa
Rated flow Q=90L/min
Rated power N=28KW(36HP)
Rated speed n=2600 r/min
Shipping dimensions 1386x1200x1500(mm)
Shipping weight 800kg



Equipment Overview

■ HS-36 adopts one-piece structure, it is easy to move and makes the pipe connection easier with quick change connector.
The machine can work continuously within 40 ℃ temperature by the oil cooling system.
It can make starting, stopping and warming up function through a integrated control box.
With the double oil passages function, we can make drilling and cutting at the same time.
To ensure that users can quickly access we have the quick connector which can be plug and pull quickly.



Attention

■ If any equipment has abnormal sound in the follow-up process, please stop using equipment and contact the manufacturer immediately.

Antifreeze (vol%) Water (vol%) Freezing temperature (degrees Celsius)
100 0 -45.0℃
90 10 -40.0℃
80 20 -33.5℃
70 30 -25.5℃
60 40 -19.0℃
50 50 -13.0℃


■ It stores in a cool and airy warehouse. Must keep it away from the fire, heat, seepage and rain.
■ It should be kept separately from oxidants and halogens, and must not be mixed.
■ It adopts explosion-proof lighting and ventilation facilities. The mechanical equipment and tools, which are easy to produce sparking, are prohibited.
■ The storage area shall be equipped with emergency disposal equipment and suitable storage materials.
