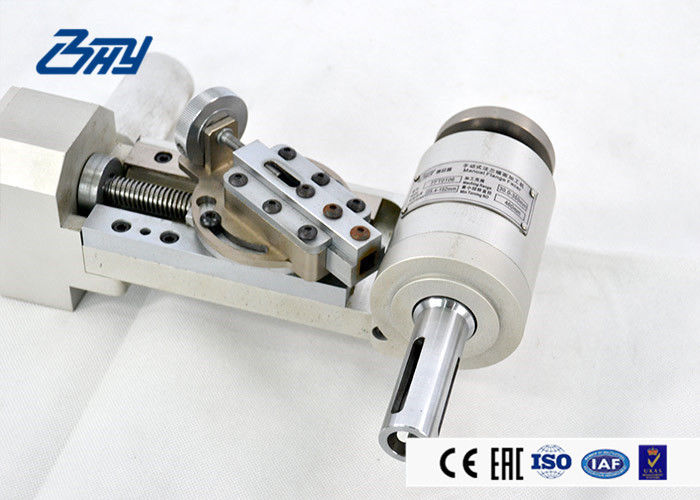

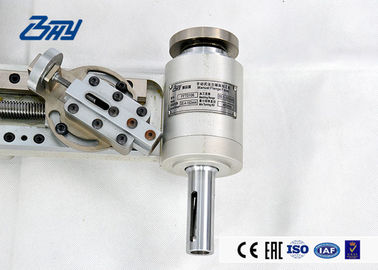

Low Clearance Portable Flange Facing Machine ID Mounted Inner Mounted

Low Clearance Portable Flange Facing Machine ID Mounted Inner Mounted
Low Clearance Portable Flange Facing Machine ID Mounted Inner Mounted Low Clearance Portable Flange Facing Machine ID Mounted Inner Mounted

Large Image :  Low Clearance Portable Flange Facing Machine ID Mounted Inner Mounted

Product Details:
Place of Origin: Jiangsu China
Brand Name: BHY
Certification: ISO 9001:2008, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: FFT106
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Aluminium Case
Delivery Time: 15-35days
Supply Ability: 500 PCS/Year
Detailed Product Description
Brand Name: Bohyar Drive Mode: Manual
Procssing Standard: ASME B 16.5 Max Int Clamp Cap: 6"(152mm)
Installation: Vertical Or Horizontal Installation Shipping Dimensions: 495x390x165(mm)
High Light:

portable flange facing machine

,

flange facing equipment

Low Clearance Portable Flange Facing Machine ID Mounted Inner Mounted



Product Introduction

Regardless of the flange thickness, FFT series of manual flange facers can meet your needs. The FFT106 manual flange facing tool is a small-diameter flange end face machining device, and has the lathe-level machining precision and performance. The product can rapidly, accurately and efficiently meet the site needs of online repair, and help to reduce the downtime and costs of transportation and reassembly. It is an ideal choice for any inventory of machining tools.



Features

■ The manual flange facer could be used in a wide range of applications without needing power supply.

■ The manual flange facer has simple design and is portable to carry.

■ The weight of the manual flange facer is only 7kg;

■  It can be installed easily and rapidly with self-centering tensioning mechanism.

■ The sealing face of a flange with the inside diameter of 25.4 - 152.4mm can be repaired easily.

■ It can be applicable to various kinds of carbon steel, stainless steel, alloy steel and other materials.

■ The three-stator self-centering expansion mechanism facilitates and quickens installation.

■ It adopts cold machining without high temperature or spark.



Technical Parameters

Model FFT106
Min int clamp cap 1in(25.4mm) Max int clamp cap 6in(152mm)
Min facing diam 1in(25.4mm) Max facing diam 14in(350mm)
Minimum swing diameter 460mm Power Manual
Processing standard ASME B16.5
Mounting method Installed vertically or horizontally
Shipping dimensions 495*390*165mm Shipping weight

17lbs(7.7kg)



Operating Steps

■ Rapidly lock the central shaft with a ratchet wrench, and accurately align it to ensure the concentric operation       along with the flange end face.

■  Properly adjust the tool onto the surface to be machined, and set the feeding size.

■ Hold the hand wheel rotating device to machine the flange end face.

■ No maintenance is needed theoretically after operation, but it us recommended to lubricate the product on a        regular basis to maximize the performance and service life.



Operating Instructions

■ Wear protective clothing including safety goggles, hard hat, steel toe shoes, ear plugs (hearing protection),          hair restraints and coveralls.

■ Never wear jewelry when operating rotating machinery.

■ Keep the worksite clean. Use a brush to remove chips from the work piece. Do not use your hands or an air       hose to remove chips.

■ Support work material for total machine weight.

■ Keep hands away from machine when operating! Adjustments should only be made when the rotation has           stopped. Keep hands away from all pinch points



Information and feedback

Warranty Information: The FFT106 manual flange facing tool produced by Bohyar has a warranty period of one year. In case of any quality problem during the warranty period, we will provide free maintenance and repairment service.



Feedback: We will highly appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
