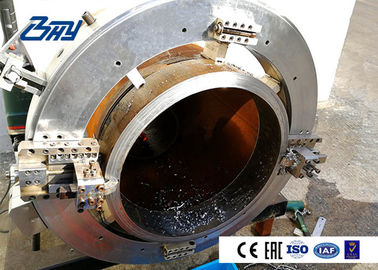

Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine

Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine
Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine

Large Image :  Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM0612H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Model: SFM0612H Drive Mode: Hydraulic
Max Wall Thickness: 80mm Net Weight: 45kg
Processing Range: 6"-12" Material: Aeronautical Aluminum
Hydraulic Requirements: 65L/min,10Mpa Business Parters: CNPC, SINOPEC, CNOOC Etc.
High Light:

split frame pipe cutting machine

,

cold cutting pipe equipment

Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine



Product Introduction

Products of SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.



Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire



Product Features

■ Split frame structure, can be quickly install

Cold Cutting and Beveling, no heat affected zones

Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

Machining OD of pipe from 2” up to 84”



Specification

Drive Options: Pneumatic, Hydraulic, and Electric

Air requirements: 2-3m³/min

Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

Electric requirements: 220V/AC 50/60Hz
Feed mode: Star wheel, automatically
Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy


Beveling type

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site



Basic Info.

Model SFM1824H
Drive Mode Hydraulic
Hydraulic Requirements 65L/min,10MPA
Application Range (O.D.) 18" - 24"
Wall Thickness ≤100mm
Net Weight 123kg
Feed Method Star wheel system
Feed 0.08mm/r
All standard accessories included





Manufacture

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe ToolsAutomatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

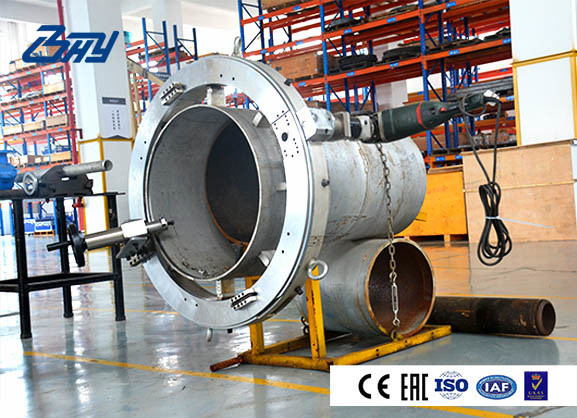

Working On Site


Lightweight Portable CNC Hydraulic Pipe Cutting And Beveling Machine 7
