Light Weight Portable Electric Hydraulic Power Unit With High OutPut Torque

Light Weight Portable Electric Hydraulic Power Unit With High OutPut Torque
Light Weight Portable Electric Hydraulic Power Unit With High OutPut Torque Light Weight Portable Electric Hydraulic Power Unit With High OutPut Torque

Large Image :  Light Weight Portable Electric Hydraulic Power Unit With High OutPut Torque

Product Details:
Place of Origin: Jiangsu China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: HS20
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15-35days
Payment Terms: T/T, L/C
Supply Ability: 200pcs/year
Detailed Product Description
Brand Name: Bohyar Drive Mode: Electric
Rated Pressure: P=10Mpa Hydraulic Motor Torque: M=126N.M
Electric Motor Power: N=15KW(20HP) Electric Motor Rotate Speed: N=1450r/min
High Light:

hydraulic power pack unit

,

hydraulic electric power pack

Light Weight Portable Electric Hydraulic Power Unit With High OutPut Torque



Product Introduction

The hydraulic truck HS-20 consists of a motor and a variable piston pump. Core parts are imported brands (with anti-explosion electric motor optional), which gives machine safety and durability. The trolley body is controlled by touch screen, which enables ease of operation and better display.



Industry Application

Hydraulic Power Units made by Bohyar, can meet the requirements of various industries, such as:Power Station, Nuclear Power Station, Petrochemical Plant, Boiler Plant, Refinery.



Features

■ Space-saving, can controlled by only one man

■ Anti-explosion electric motored can be offered under customer requirements.

■ Core parts are all imported with high quality and long service life

■ Using variable vane pump with real-time load feedback and adjustment allows the system to save more energy and reduce heat.



Technical Parameters

Model HS-20
Drive mode Electric
Rated power N=15KW(20HP)
Rated speed n=1450 r/min
Rated pressure P=10Mpa
Rated flow Q=38L/min
Shipping dimensions 1200x770x1310(mm)
Shipping weight 400kg





Equipment Overview

■The entire hydraulic system of HS-10, using a one-piece structure and equipped with casters and push hands, is easy to move.

■The hydraulic truck HS-10 consists of a motor and a variable piston pump. These motor and pumps are imported one with light weight, strong power and stable operation.

■The equipment can operate continuously within 40 ℃ ambient temperature by our cooling system.

■The emergency stop button for emergency use and ensure the safety operation.

■To ensure that users can quickly access we have the quick connector which can be plug and pull quickly.



Product Advantages

Hydraulic power units designed for pipeline processing equipment are suitable for most of the working conditions. HS series is easy to operate with a wireless remote control module, which means less training time to operate the hydraulic power station.

The imported motors, pumps parts and the optimized hydraulic systems ensure the hydraulic power units to operate with stable and efficient output, thus providing strong assurance for high quality cutting and beveling effect.



Operating Steps of Hydraulic Unit

■ Move the device to the appropriate machining position.

■ Add the low-temperature anti-wear hydraulic oil from the oil filler to the top of 1/5 level of the tank.

■ Connect the power cord, open the cabinet to ensure that the phase and phase sequence protection relay work indicator light is always on the state. If not, replace the power line phase sequence until the work indicator is light.

■ Start the motor and then stop and observe from the motor tail whether the motor rotation is rotated clockwise.

■ Press the motor start button to start the motor and turn on the enable switch to supply the hydraulic motor. Control the speed switch to adjust the hydraulic motor speed.

■ After the use, close the enable switch, then press the motor stop button to turn off the motor.



Information and feedback

Maintenance Information:

Before the machine or any of its accessories is returned for maintenance, please call Bohyar Company. We will give suggestions on transportation and handover of the machine or accessories, and estimate the time and cost of corresponding maintenance.



Feedback:

To constantly improve the satisfaction of users with the product quality and service, we will appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.

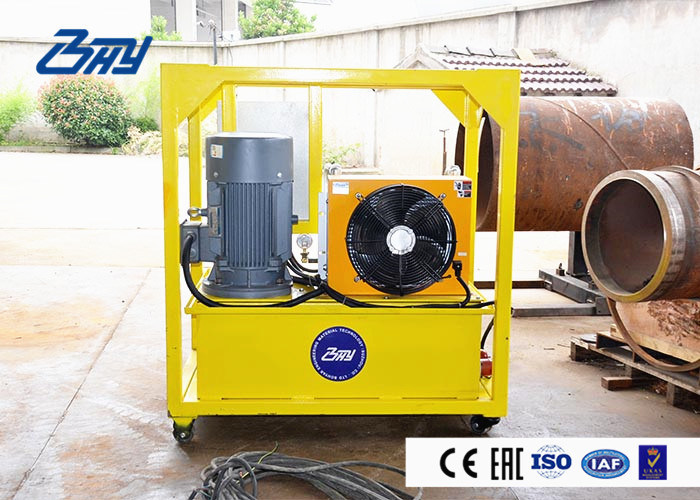

HS20 Electric Hydraulic Power Unit
