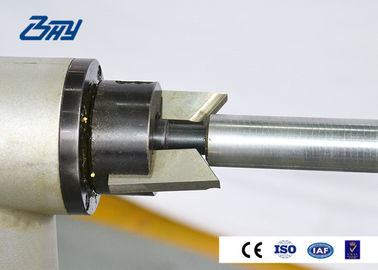

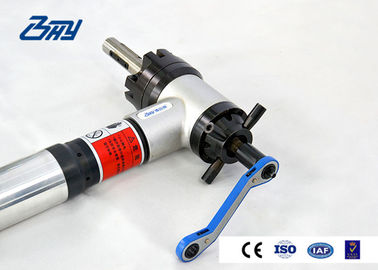

Inner Mounted Pneumatic Pipe Bevelling Machine , Portable Beveling Tool

Inner Mounted Pneumatic Pipe Bevelling Machine , Portable Beveling Tool
Inner Mounted Pneumatic Pipe Bevelling Machine , Portable Beveling Tool Inner Mounted Pneumatic Pipe Bevelling Machine , Portable Beveling Tool

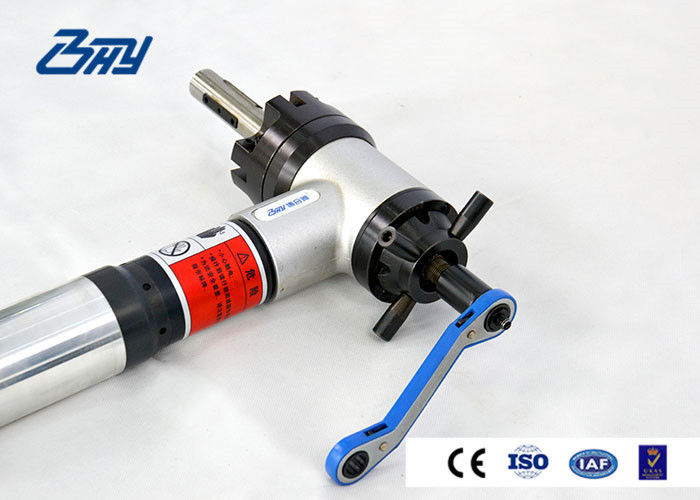

Large Image :  Inner Mounted Pneumatic Pipe Bevelling Machine , Portable Beveling Tool

Product Details:
Place of Origin: Jiangsu China
Brand Name: BHY
Certification: CE, ISO 9001:2008, ISO14001:2004;OHSAS 18001:2007
Model Number: BPP6P
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15-30 days
Supply Ability: 2000sets/Year
Detailed Product Description
Brand Name: Bohyar Drive Mode: Pneumatic
Item No.: BPP6P Wall Thickness: ≤20mm
Material: High Strength Aluminum Beveling Angle: Under Customer Requirements
High Light:

pneumatic pipe beveler

,

pneumatic beveling tools

Inner Mounted Pneumatic Pipe Bevelling Machine , Portable Beveling Tool



Product Introduction

BPP series of internal-expanding pipe beveling machine is the pipe processing equipment independently developed by our company based on the market and prospect of the pipe service industry. The products are portable, precise, efficient and in modular design, fully meeting customer demands. It's designed for simultaneous facing and beveling tubes and pipes (including carbon steel, alloy steel and stainless steel) from 12.5mm to 240mm I.D. up to a wall thickness of 0.75" (18mm).



Features

■ Compact structure and good appearance, high strength aluminum body

■ Lightweight and high-strength aluminum - ensure portability.

■ Interchangeability of components - allows accessories & tool slides to mount to multiple ring sizes

■ Cold machining - no heat affected zones.

■ Precision-manufactured tool slides - ensure absolute rigidity.

■ Quick installation, positioning the machine in the center of the tube and install the appropriate tool to complete the preparation.

■ Well-adapted, you can make the speed adjust depend on the working conditions.



Technical Parameters

Product series

Model

Processing range

(IDmm)

Wall thickness

(mm)

Rated power

(kw)

Rotating speed

(rpm)

BPP1E kit1

12.5-15

≤3

1.43

3-70

BPP1E kit2

15-20

≤5

1.43

3-70

BPP1E kit3

20-28

≤6

1.43

3-70

BPP3E/ BPP3P

26-79

≤15

1.43

3-70

BPP3PE

36-90

≤15

1.43

3-50

BPP4E/ BPP4P

45-105

≤20

1.43

34

BPP6E/ BPP6P

65-159

≤20

1.43

34

BPP9E

80-240

≤15

1.43

16

*Electric: Rated voltage of 220V, 50/60Hz



Installation & Processing

■ Measure the inside diameters of the pipe to be processed and choose a suitable machine and expansion block.

■ Select the appropriate block, place it on the bottom of the expansion block to ensure the top surface of the expansion block remain horizontal without any inclination, and rotate the sleeve anticlockwise to tighten the expansion block and, ensure that the machine is firmly fixed in the pipeline.

■ Choose a tool with suitable angle listed in the tool table based on the processing requirements, install it on the cutter head of the machine and tighten the bolts to fix the tools.

■ Rotate the feed hand wheel and extend the feed spindle Loosen screw and feed.

■ Stretch the machine expansion mechanism into the pipe, and reserve sufficient feed space between the tool on the cutter head and the pipe end face.

■ Rotate the expansion sleeve with the ratchet wrench while adjusting the position of the machine to ensure the feed spindle and the center of the pipe is concentric; Tighten nuts on the expansion sleeve with the ratchet wrench after determining the position.

■ Start the motor. Rotate the feed handwheel to make the cutting edge contact with the pipe wall, and then bevel.





Information and Feedback

Warranty Information: The BPP pipe beveling machine produced by Bohyar has a warranty period of one year. In case of any quality problem during the warranty period, we will provide free maintenance and repairment service.



Feedback: We will highly appreciate if you contact us to present any better operation or service methods of the equipment or any suggestion on the optimization of any technical data. We will consider and undertake to validate your precious suggestions, so as to modify or update the product and operation manual for improvement.
