Electric Cold Pipe Cutting And Beveling Machine With Perfect Surface

Electric Cold Pipe Cutting And Beveling Machine With Perfect Surface
Electric Cold Pipe Cutting And Beveling Machine With Perfect Surface Electric Cold Pipe Cutting And Beveling Machine With Perfect Surface

Large Image :  Electric Cold Pipe Cutting And Beveling Machine With Perfect Surface

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM2632E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Name: Cold Pipe Cutting And Beveling Machine Drive Mode: Electric
Feed: 0.08mm/r Surface: Perfect Surface
Structure: Split Frame Structure HS: 8461909000
High Light:

cold pipe cutting and bevelling machine

,

pipe cutter and beveler

Electric Cold Pipe Cutting And Beveling Machine With Perfect Surface



Cold Pipe Cutting And Beveling Machine Features:



1. The body uses aeronautical aluminum alloy material, gear ring using titanium alloy material, light weight, high strength;
2. High strength structural design, body without through hole, no disconnection, strong integrity, uniform force;
3. Gear Ring dual guide rail design, uniform force, stable operation;
4. Standard with new type tool frame, single guide rail design, worm gear and trapezoidal threaded screw drive, stable and reliable;
5. Automatic return one point cutting tool feeding, feed adjustment range is unlimited;
6. All activity accessories are humanized fast connection design, simple and efficient installation;
7. Equipped with 3-axis hinge, flexible installation of equipment, no space restriction, easy to accept and transshipment;
8. Optional a variety of functional accessories, including roundness compensation tool frame, drilling and milling accessories, cylindrical cutting accessories, internal boring accessories, 3PE anticorrosion layer Removal accessories, bridge tool frame accessories, narrow gap installation accessories, reverse mounting kit, high-speed beveling positioning accessories, automatic pair tightening kit and so on;
9. Due to the uniform bolt specifications, the entire machine handling and adjustment, only need one wrench can be done.



Cold Pipe Cutting And Beveling MachineSlides

■ Thick-wall tool slide (conventional): It can be used to SFM models from 0206 to 4248 with stroke of 64 mm; It can be used in large-size pipes and pipes with different wall thicknesses.
■ Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure continuous truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined with counterbore slide.



Pipe Cold Cutting Tools Models Dimension





Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site



The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model A(mm) B(mm) C(mm) D (mm) E (mm) F (mm)

G

(mm)

SFM0206 176 70 122 176 225 253 164
SFM0408 228 70 122 176 225 253 164
SFM0612 332 70 122 176 225 253 164
SFM0814 364 70 122 176 225 253 164
SFM1016 416 70 122 176 225 253 164
SFM1218 468 70 122 176 225 253 164
SFM1420 518 70 122 176 225 253 164
SFM1824 622 102 98 176 235 253 174
SFM2026 674 102 98 176 235 253 174
SFM2430 776 102 98 176 235 253 174
SFM2632 826 102 98 176 235 253 174
SFM3036 928 102 98 176 235 253 174
SFM3238 1006 102 98 176 235 253 174
SFM3642 1082 102 98 176 235 253 174
SFM4248 1236 102 98 176 235 253 174
SFM3648 1296 140 220 276 235 253 174
SFM4860 1600 140 220 276 235 253 174
SFM6072 1905 140 220 276 235 253 174
SFM7284 2210 140 220 276 235 253 174

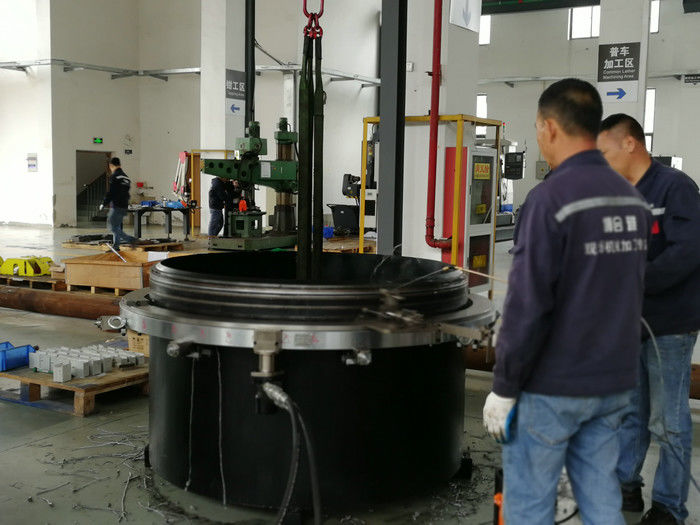

Working On Site



Electric Cold Pipe Cutting And Beveling Machine With Perfect Surface 1
