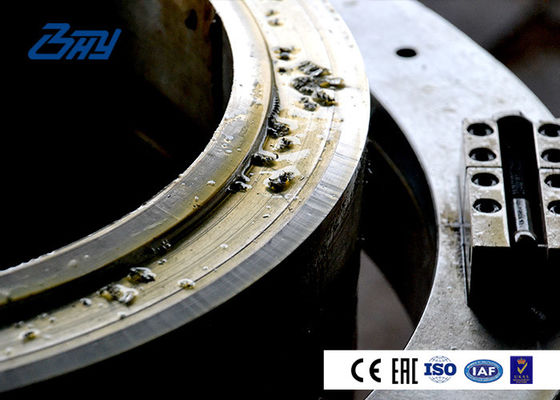

Cold Cutting Electric Pipe Cutting And Beveling Machine Customized Tools

Cold Cutting Electric Pipe Cutting And Beveling Machine Customized Tools
Cold Cutting Electric Pipe Cutting And Beveling Machine Customized Tools Cold Cutting Electric Pipe Cutting And Beveling Machine Customized Tools

Large Image :  Cold Cutting Electric Pipe Cutting And Beveling Machine Customized Tools

Product Details:
Place of Origin: Jiangsu, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM0814E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T,
Supply Ability: 1000 sets/year
Detailed Product Description
Model: SFM0814E Drive Mode: Electric
Processing Range: 8"-14" Max Wall Thickness: 100mm
Application: Nuclear Power, Thermal Power, Chemical Plant, Natural Gas, Boiler Plant, Pharmaceutical Factory Tool Slide: Spring,thick-wall,drilling&beveling Tool Slides
High Light:

electric pipe cutting machine

,

electric pipe cutter

Split Frame Machine



Product Introduction
SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.



Product Features

It is in split frame structure, and can be quickly installed to any position of external wall of operational pipeline with its clamps, occupying small space.
■ It can process pipes made from various grades of carbon steel, alloy steel, stainless steel and other metals.
■ Fixed rings use lightweight and high-strength aeronautical aluminum to ensure portability
■ Cold Cutting-No heat affected zones
■ Equipped with precise machining tools, with high efficiency and long service life


Dimension

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors
Model A(mm) B(mm) C(mm) D (mm) E (mm) F (mm)

G

(mm)

SFM0206 176 70 122 176 225 253 164
SFM0408 228 70 122 176 225 253 164
SFM0612 332 70 122 176 225 253 164
SFM0814 364 70 122 176 225 253 164
SFM1016 416 70 122 176 225 253 164
SFM1218 468 70 122 176 225 253 164
SFM1420 518 70 122 176 225 253 164
SFM1824 622 102 98 176 235 253 174
SFM2026 674 102 98 176 235 253 174
SFM2430 776 102 98 176 235 253 174
SFM2632 826 102 98 176 235 253 174
SFM3036 928 102 98 176 235 253 174
SFM3238 1006 102 98 176 235 253 174
SFM3642 1082 102 98 176 235 253 174
SFM4248 1236 102 98 176 235 253 174
SFM3648 1296 140 220 276 235 253 174
SFM4860 1600 140 220 276 235 253 174
SFM6072 1905 140 220 276 235 253 174
SFM7284 2210 140 220 276 235 253 174



 Disassembly

■ Remove the driving device (pneumatic, electric or hydraulic) from the split frame machine;

■ Withdraw the tool slide; disassembly tool slide is not necessarily needed for storage of the machine;

■ Remove foreign matters from the machine such as metal debris and excess cooling agent;

■ Separate the machine into two parts, and check whether there is any metal debris on the bearing guiderail;

■ Drip few drops of rail lubricant on a felt wiper before storing the machine.



Report on Comparison of Product Advantages

Name of component Bohyar Others Advantages
Fixed coil Imported aviation aluminum Steel 45# Light
Moving coil Die steel Steel 45# Solid and durable
Tool Imported tool material Low price Good quality
Tool slide Die steel Steel 45# Solid and durable
Tool slide structure Compact and small size Large Small size
Eccentric shaft Quenching and grinding processing Lathe processing High precision
Gear Gear-grinding processing Gear-shaping processing High precision, stable operation and low noises
Power supply (electric) Germany motor Low price Strong power, stable operation, low noise and long service life
Power supply (pneumatic) Taiwan pneumatic motor Low price Strong power, stable operation, low noise and long service life
Power supply (hydraulic) White motor Low price Strong power, stable operation, low noise and long service life
