|Max Wall Thickness:||100mm||Finish:||Anodizing Sand Blasting|
|Function:||Cut, Bevel, Counterbore, Drill And Mill Pipes||Processing Range:||8"-14"|
split frame pipe cutting machine,
split frame machine

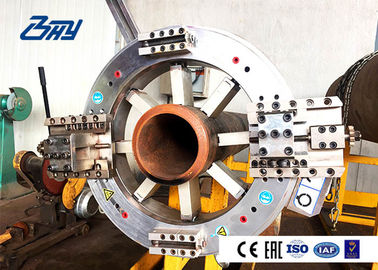

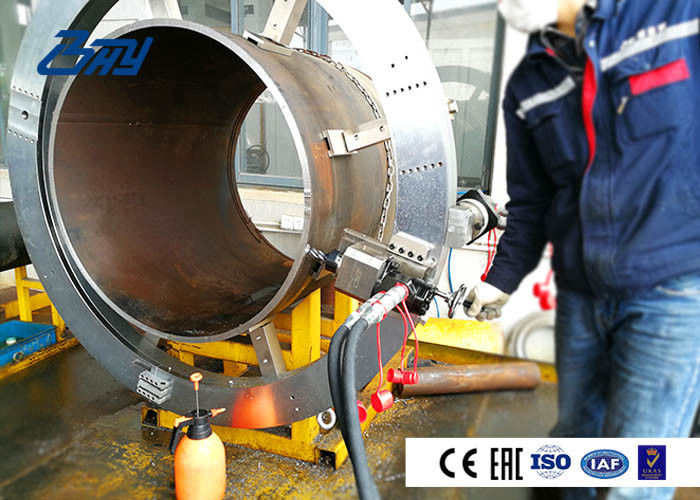

Products of SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.
■ Split frame technology, easy to install in the pipeline;
■ Out-mounted, clamping by multipoint jaws;
■ Cold cutting, don’t influence the pipe’s material;
■ Auto feed, cut and bevel the pipe at the same time, cost-effective;
■ Three types of drive motors: electric, pneumatic and hydraulic;
■ Can process material: carbon steel, alloy steel, stainless steel etc.
■ Precise cutting and beveling tools with high efficiency and long service life.
The machine delivered will be packed in a portable aluminum alloy suitcase (Medium machine is packed with pushable aluminum case while large-size machine is packed with wooden case or metal packing case). The foam-molded pad will be equipped to prevent shocking of the case, and attached with necessary standard tool, power supply and other accessories. Our company provides all necessary instruments, please refer to the package of product for details.
■ Clean the dust, debris and accumulated oil or grease on the machine;
■ Inject some lubricating oil to the oil injection hole of the machine, and run the motor for some time to lubricate internal components;
■ Paint or apply a thin layer of anti-corrosion lubricating oil on surfaces that have not be completed or painted;
■ Store the machine in a storage case, and put all components in corresponding compartments;
■ The storage case shall be stored indoors as far as possible and kept dry.
|Name of component||Bohyar||Others||Advantages|
|Fixed coil||Imported aviation aluminum||Steel 45#||Light|
|Moving coil||Die steel||Steel 45#||Solid and durable|
|Tool||Imported tool material||Low price||Good quality|
|Tool slide||Die steel||Steel 45#||Solid and durable|
|Tool slide structure||Compact and small size||Large||Small size|
|Eccentric shaft||Quenching and grinding processing||Lathe processing||High precision|
|Gear||Gear-grinding processing||Gear-shaping processing||High precision, stable operation and low noises|
|Power supply (electric)||Germany motor||Low price||Strong power, stable operation, low noise and long service life|
|Power supply (pneumatic)||Taiwan pneumatic motor||Low price||Strong power, stable operation, low noise and long service life|
|Power supply (hydraulic)||White motor||Low price||Strong power, stable operation, low noise and long service life|
