Automatic Cutting And Pipe Beveling Machine, 48in - 60in, 1300mm, 1400mm, 1500mm

Automatic  Cutting And Pipe Beveling Machine, 48in - 60in, 1300mm, 1400mm, 1500mm
Automatic  Cutting And Pipe Beveling Machine, 48in - 60in, 1300mm, 1400mm, 1500mm Automatic  Cutting And Pipe Beveling Machine, 48in - 60in, 1300mm, 1400mm, 1500mm Automatic  Cutting And Pipe Beveling Machine, 48in - 60in, 1300mm, 1400mm, 1500mm

Large Image :  Automatic Cutting And Pipe Beveling Machine, 48in - 60in, 1300mm, 1400mm, 1500mm

Product Details:
Place of Origin: Suzhou, China
Brand Name: BHY
Certification: ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007
Model Number: SFM4860H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Aluminum case, wooden case or metal packing case
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/year
Detailed Product Description
Name: Portable Pipe Cutting And Beveling Machine Feature: Automatic
HS: 8461909000 Cutting Tools: Clip-type, Ordinary Cutting Tools
Advantage: Easy Set-Up & Operation Business Parters: CNPC, SINOPEC, CNOOC Etc.
High Light:

portable pipe cutting machine

,

pipe bevel cutter

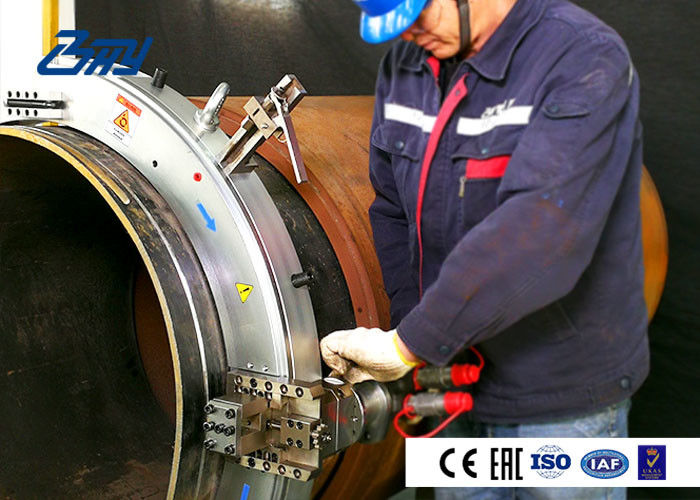

Automatic Portable Pipe Cutting And Beveling Machine Easy Set-Up & Operation,48" - 60", 1300mm, 1400mm, 1500mm pipe



Portable Pipe Cutting Machine  Details



1) chuck screw:The screws are distributed all around of annulus. Adjust the distance one by one until the pipe is locked.

2) blade carrier of groover:There are two blade carriers. One is used for equipping groove blade, another is used for equipping cut-off blade.

3) tension block:There are four kinds of block and any kind has four pieces. You can choose suitable block according to the diameter. These blocks have the ranges of diameter, which are shown on surface of the block.

4) cut-off blade

5) planet reducer casing parts

6) pneumatic / air power motor

7) hanging ring

8) feeder lever:The machine stops feeding when the lever is put outward and feeding when the lever is on the low order.



Portable Pipe Cutting Machine Application



■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire



Portable Pipe Cutting Machine Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”



Beveling type

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

SFM Tools

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site













Models Dimension



Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Model

A (mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

G(mm)

SFM0206

176

70

122

176

225

253

164

SFM0408

228

70

122

176

225

253

164

SFM0612

332

70

122

176

225

253

164

SFM0814

364

70

122

176

225

253

164

SFM1218

468

70

122

176

225

253

164

SFM1420

518

70

122

176

225

253

164

SFM1824

622

102

98

176

235

253

174

SFM2026

674

102

98

176

235

253

174

SFM2430

776

102

98

176

235

253

174

SFM2632

826

102

98

176

235

253

174

SFM3036

928

102

98

176

235

253

174

SFM3238

1006

102

98

176

235

253

174

SFM3642

1082

102

98

176

235

253

174

SFM4248

1236

102

98

176

235

253

174

SFM3648

1296

140

220

276

235

253

174

SFM4860

1600

140

220

276

235

253

174

SFM6072

1905

140

220

276

235

253

174

SFM7284

2210

140

220

276

235

253

174















































Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools

Automatic Split Frame Pipe Cutting Machine and Cold Cutting Pipe Tools







Working on site



■ Project: chemical plant repaire

■ Pipe material: 5CrMoR+00Cr19Ni10

■ Pipe O.D.: 1219mm, 350mm

■ Pipe thickness: 59mm, 30mm



Portable Aluminum Cold Pipe Cutting And Beveling Machine Processing Various Pipes on site
