|Processing Range:||2''-6''||Max Wall Thickness:||30mm|

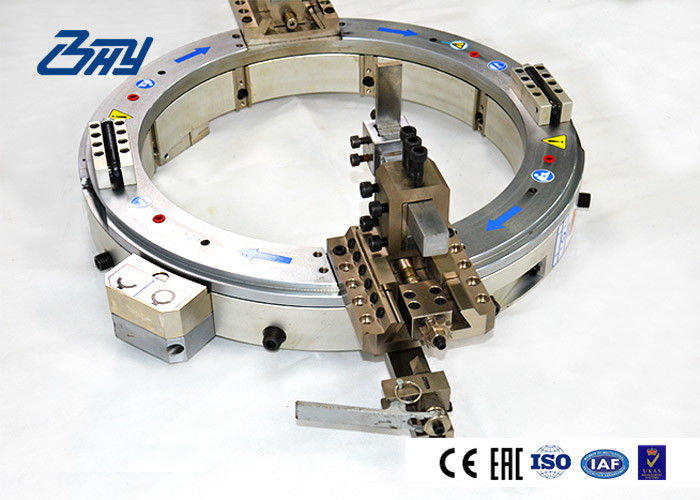

split frame pipe cutting machine,
split frame machine

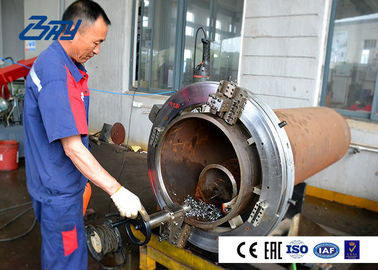

Products of SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.
|Drive mode||Pneumatic||Air requirements||2-3m³/min|
|Feed method||Star wheel system||Feed||0.08mm/r|
|Finish||Anodizing sand blasting||Packaging||Aluminum alloy,metal packing case or wooden box|
■ Split frame technology, easy to install in the pipeline;
■ Out-mounted, clamping by multipoint jaws;
■ Cold cutting, don’t influence the pipe’s material;
■ Auto feed, cut and bevel the pipe at the same time, cost-effective;
■ Three types of drive motors: electric, pneumatic and hydraulic;
■ Can process material: carbon steel, alloy steel, stainless steel etc.
■ Precise cutting and beveling tools with high efficiency and long service life.
■ Thick-wall tool slide (conventional): It can be used to SFM models from 0206 to 4248 with stroke of 64 mm; It can be used in large-size pipes and pipes with different wall thicknesses.
■ Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure continuous truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined with counterbore slide.
■ Drilling and milling tool slide (only for hydraulic): it can achieve pipe cutting by using the drilling and milling. It is a high-strength tool slide, smooth cutting and simple operation.
